Overall View. One can see the CaptureCap(TM) attached to the buret (slightly blurred due
to the white background), the leads from CaptureCap(TM) to the RadioShack(R) Multimeter, the lead from the pH-electrode to the RadioShack(R) multimeter,
the magnetic stirrer with the beaker on it and the computer with the RS232 cable connected to it.

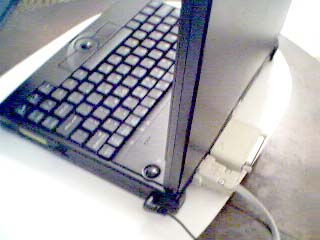

SideView of the Computer. One can see the cable connected to the RS232 port of the computer
and the dongle attached to the parallel port.
